Open source · GPL-3.0 · v1.0

Internet radio, re-broadcast as AM for the radio on your shelf

An ESP32-S3 streams internet radio over Wi-Fi and transmits it as an amplitude-modulated longwave carrier from a GPIO pin. A 1940s wireless in the same room tunes it in and plays it, through its own dial, its own speaker and its own valves.

Source on GitHub Download the firmware Quick Start (PDF) Build Manual (PDF)

See it working

Three minutes: the set on the shelf, tuned by hand across the dial, and the web page that decides what it plays.

What it actually is

One GPIO pin, one resistor, five turns of wire, back to ground. Twice, because there are two transmitters sharing nothing but the ground.

GPIO 4 through a 220 ohm resistor into a five-turn loop and back to ground, and the same again from GPIO 5

Modulation that works

Duty-cycle AM linearised through an arcsine table, because the obvious scheme barely modulates at all. A 20 kHz interrupt writes the duty register; a 6th-order low-pass keeps the transmission inside its channel.

It sounds like radio

A fractional resampler with a fill controller absorbs the drift between the station's clock and this one. A loudness AGC brings stations that differ by 10 dB to within about 2 dB of each other.

Two stations at once

Two decoders, two DSP chains, two carriers, one board. Tune one radio to 200 kHz and another to 250 kHz and they play different things.

Driven from anywhere

A web page it serves itself, and a serial console that can do everything the page can, so a board whose Wi-Fi is wrong is still reachable over USB.

The build

A Waveshare ESP32-S3-Zero, two 220 ohm resistors, 0.3 mm enamelled copper wire, four heat-set inserts and about 40 g of filament.

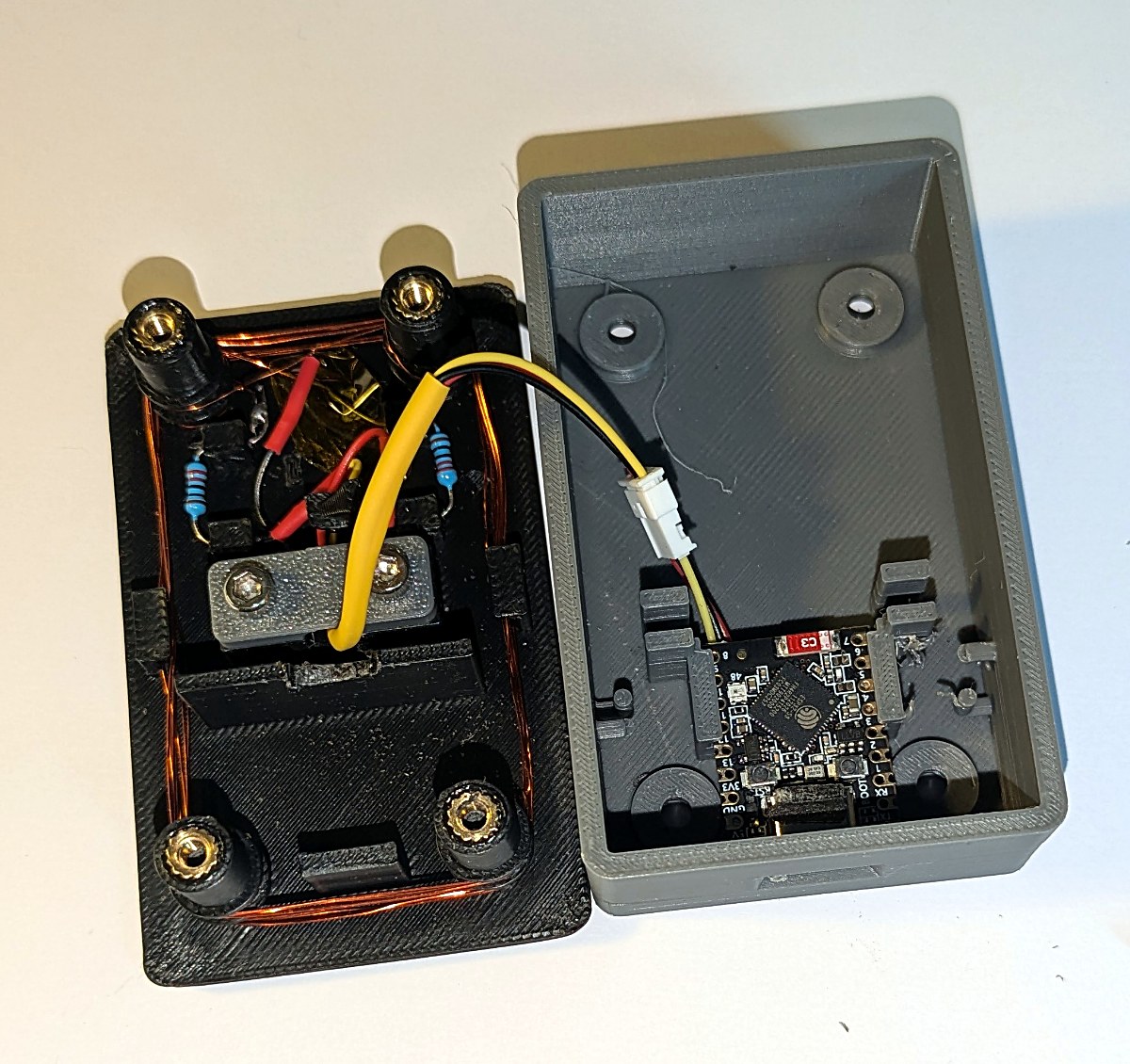

The case open: the lid with both windings and their resistors, the base with the board
The lid carries both loop windings and their series resistors. The base carries the board.

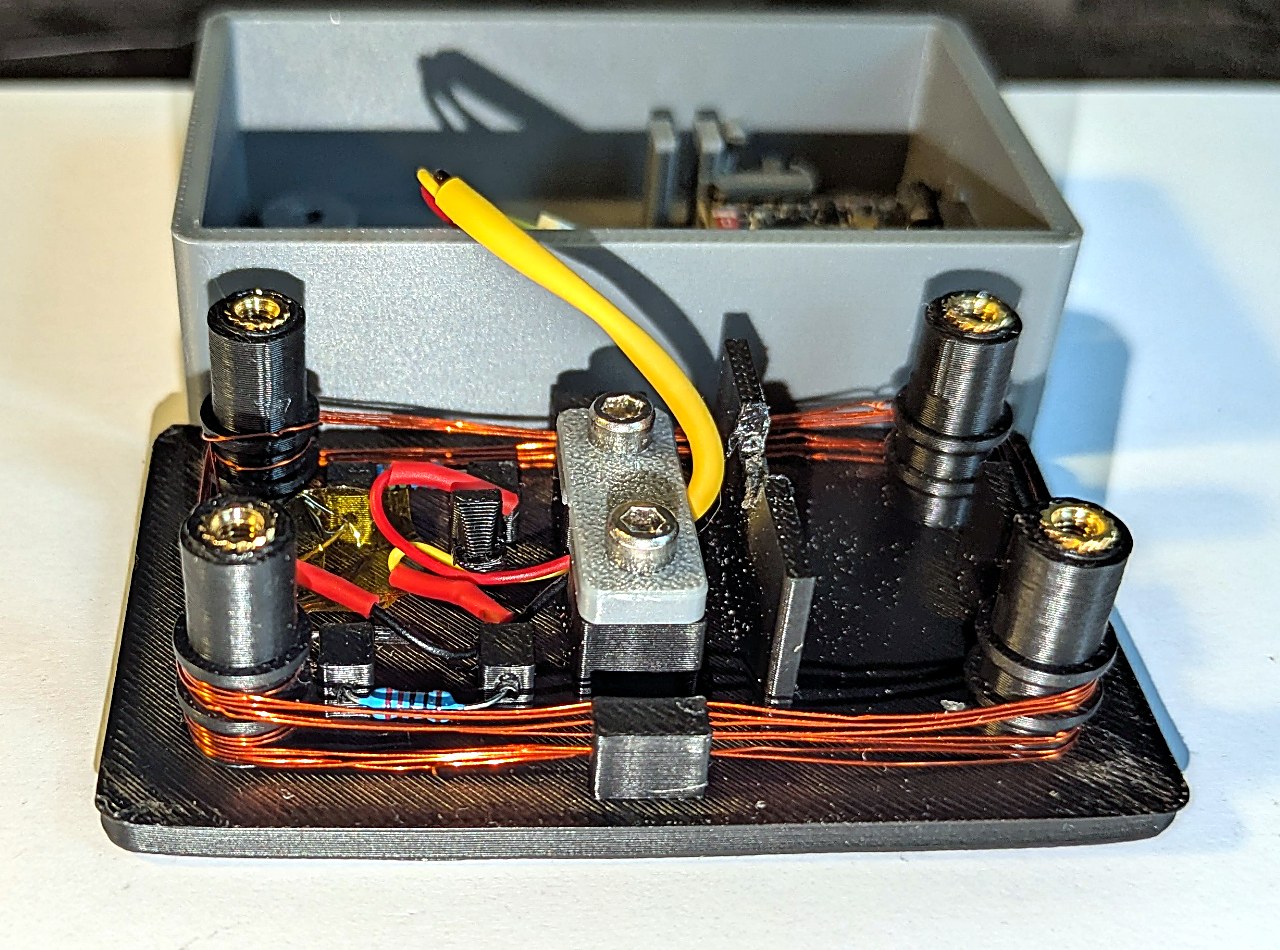

Close view of the two windings on the lid's pillars
Two windings, one per transmitter, separated by a flange on each pillar.

The printed case

Four corner pillars are the winding former, the lid fixing and the clamp that holds it all together. Every overhang is a 45 degree flare, so nothing needs support.

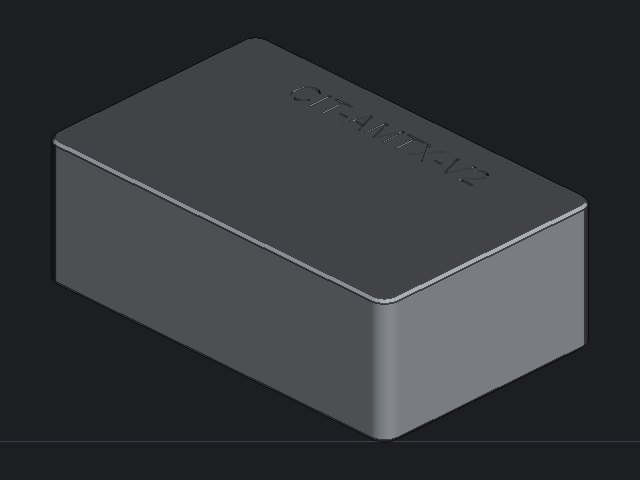

Rendered view of the assembled case
Assembled.

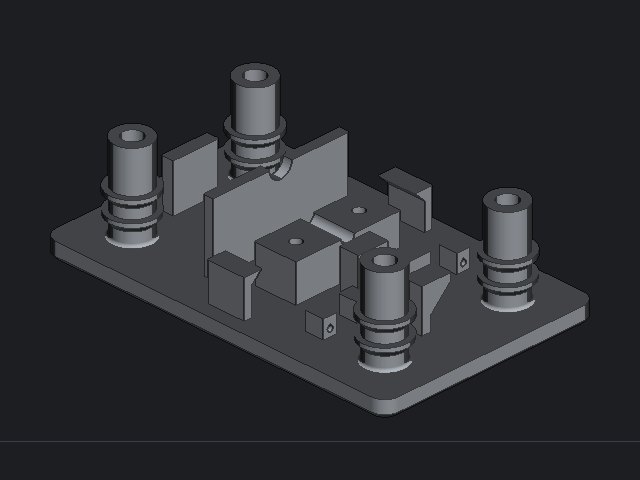

Rendered view of the lid with its four pillars
The lid, pillars up, as it prints.

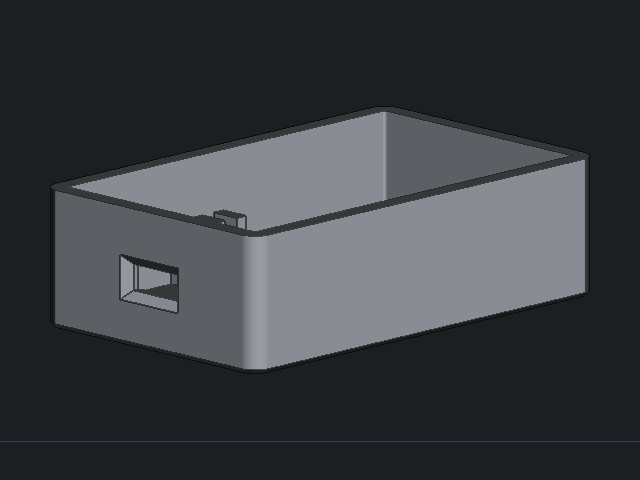

Rendered view of the base
The base: board slots and the USB opening.

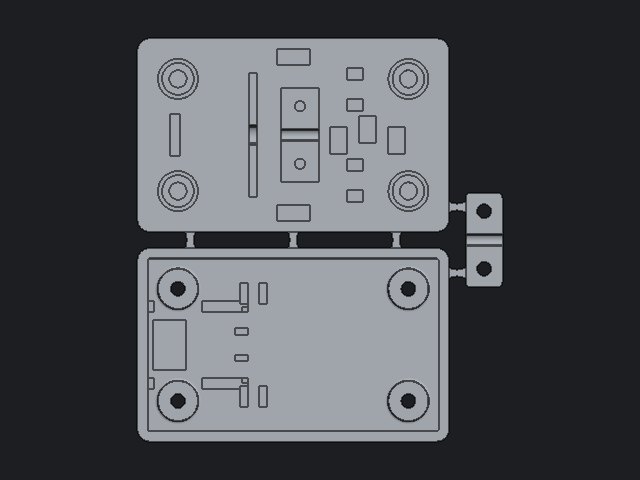

Rendered view of all three parts joined by thin tags
All three on one runner, for a printing service that charges per part.

STEP to edit and STL to print are in case/.

Flash one in a minute

pip install esptool
python -m esptool --chip esp32s3 -p COM5 write_flash 0x0 amtx-v1.0-merged.bin

Then join the AMTX-Setup Wi-Fi network the board raises, and the setup page opens by itself. It comes up playing Radio Swiss Jazz on one transmitter and the BBC World Service on the other.

That is the whole thing in one line, if you already know your way around a serial port. If you would rather be walked through it, the Quick Start does the same job from the release zip: installing Python, finding the right USB socket, the flashing tool in tools/esp-flasher, proving the firmware is alive with help, and both ways of putting the board on Wi-Fi. No compiler needed.

ManualFor
Quick StartRelease zip to a transmitter on the air, with no toolchain. Start here
BuildMaking one from parts: printing, inserts, winding, wiring, assembly
InstallationThe toolchain, building the firmware from source, flashing
UserDriving it once it runs
TechnicalHow the firmware works, for changing it

Read this before you build one

It transmits in a licensed broadcast band

The default carrier is 200 kHz, inside the longwave broadcast band and 2 kHz from BBC Radio 4 on 198 kHz. Deliberate radiation there is licensed in the UK and in most other countries, and this project holds no licence. It is built to be heard across a room: an inductive loop beside the receiver, not an antenna. What you radiate, and the rules where you live, are yours to check.

There is no output filter in this build

A square-wave carrier radiates odd harmonics at 600 kHz, 1 MHz and upward, across the whole medium-wave band. At this power, with the loop beside the receiver, that was judged acceptable by ear — and it has never been measured on a spectrum analyser. Raise the drive, lengthen the antenna or drop the resistor and the harmonics rise with it. The Technical Manual gives a low-pass network to fit if you do.

What has been tested, and what has not

This project tries to be honest about the difference between built and proven. As of v1.0:

RunsTwo stations playing at once, heard on a receiver, both decoders at full rate with the modulator never starving. Web interface, console, Wi-Fi and diagnostics all used on a real board.
PrintedThe case has been printed and built more than once. The revision published here fixes what the last print got wrong; it has not itself been printed.
UntestedThe factory-reset gesture, holding the BOOT button for five seconds. Built, never pressed.
UnmeasuredNothing has been on a spectrum analyser or a scope. Harmonic content, radiated field strength and modulation depth are all unknown.
